46M6001 Сетевая карта 2-port 40Gb InfiniBand Expansion Card (CFFh) for
46M6001 Сетевая карта 2-port 40Gb InfiniBand Expansion Card (CFFh) for
Артикул:
46M6001
Вес:
0
кг.
Есть в наличии
Количество:
Цвет:
15 383
руб.
Краткое описание: LENOVO 46M6001 - 2-port 40Gb InfiniBand Expansion Card (CFFh) for - Same Day Express Shipping offered Worldwide
brand_ice: IBM
Co2 Savings: 5.41
Internal: Yes
Connectivity technology: Wired
Host interface: PCI Express
Interface: Fiber
Fiber ports quantity: 2
Data transfer rate (max): 40 Gbp/s
Quality of Service (QoS) support: Yes
Operating temperature (T-T): 10 - 52 °C
Storage temperature (T-T): 10 - 49 °C
Operating relative humidity (H-H): 8 - 80%
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Quantity: 1
Intelligent Offloads: Yes
brand_ice: IBM
Co2 Savings: 5.41
Internal: Yes
Connectivity technology: Wired
Host interface: PCI Express
Interface: Fiber
Fiber ports quantity: 2
Data transfer rate (max): 40 Gbp/s
Quality of Service (QoS) support: Yes
Operating temperature (T-T): 10 - 52 °C
Storage temperature (T-T): 10 - 49 °C
Operating relative humidity (H-H): 8 - 80%
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Quantity: 1
Intelligent Offloads: Yes
IBM 2-Port 40Gb InfiniBand CFFh. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 40000 Mbit/s

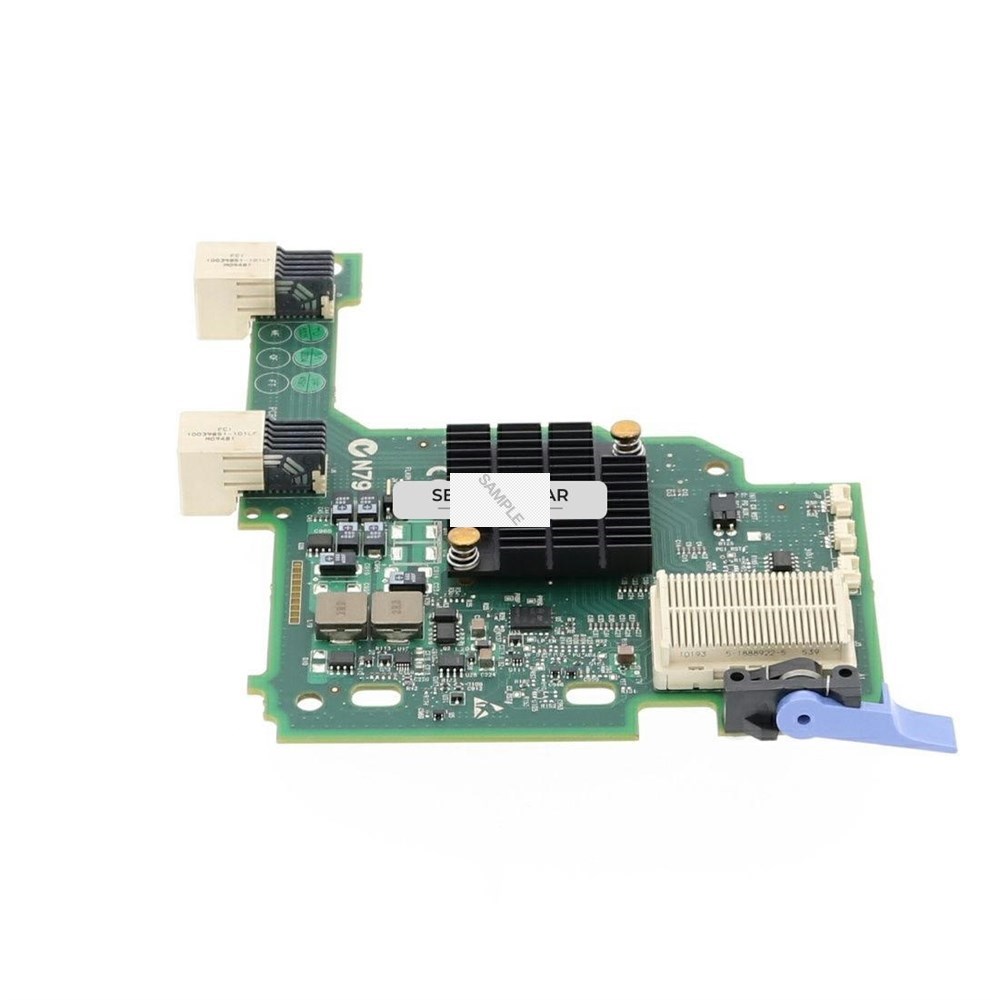

The 2-Port 40 Gb InfiniBand Expansion Card (CFFh) for IBM BladeCenter is a dual port InfiniBand Host Channel Adapter (HCA) based on proven Mellanox ConnectX IB technology. This HCA, when combined with the QDR switch, delivers end-to-end 40 Gb bandwidth per port. This solution is ideal for low latency, high bandwidth, performance-driven server and storage clustering applications in a High Performance Compute environment. The adapter uses the CFFh form factor and can be combined with a CIOv or CFFv adapter to get additional SAS, Fibre Channel, or Ethernet ports.
The 2-Port 40 Gb InfiniBand Expansion Card (CFFh) for IBM BladeCenter is a dual port InfiniBand Host Channel Adapter (HCA) based on proven Mellanox ConnectX IB technology. This HCA, when combined with the QDR switch, delivers end-to-end 40 Gb bandwidth per port. This solution is ideal for low latency, high bandwidth, performance-driven server and storage clustering applications in a High Performance Compute environment. The adapter uses the CFFh form factor and can be combined with a CIOv or CFFv adapter to get additional SAS, Fibre Channel, or Ethernet ports.
-
Co2 Savings5.41
-
Connectivity technologyWired
-
Data transfer rate (max)40 Gbp/s
-
Fiber ports quantity2
-
Host InterfacePCI Express
-
Intelligent OffloadsYes
-
InterfaceFiber
-
InternalYes
-
Linux operating systems supportedYes
-
Operating relative humidity (H-H)8 - 80%
-
Operating temperature (T-T)10 - 52 °C
-
Quality of Service (QoS) supportYes
-
Quantity1
-
Storage temperature (T-T)10 - 49 °C
-
Windows operating systems supportedYes
-
ПоставщикSERVERGEAR
-
ПроизводительIBM
-
Тип товараСетевая карта
