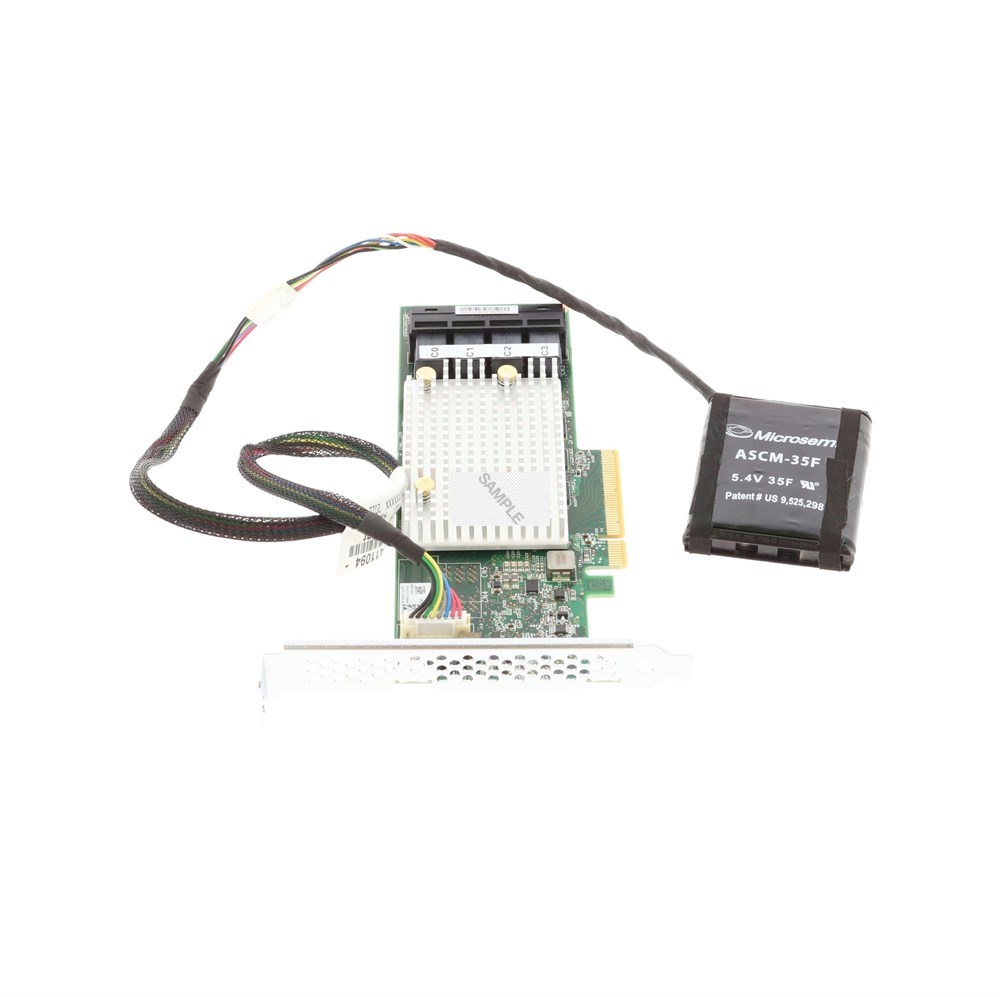

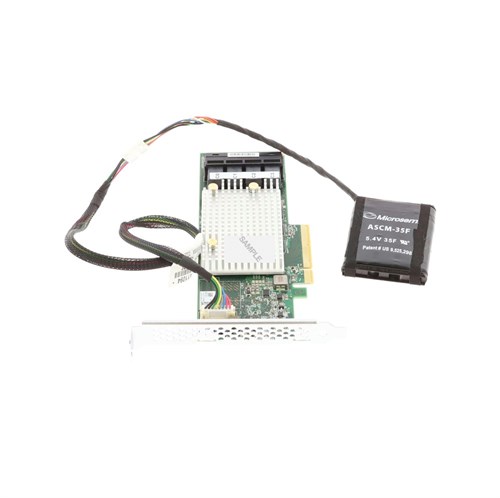

4Y37A72485 Контроллер ThinkSystem RAID 9350-16i 4GB Flash PCIe 12Gb Adapter
4Y37A72485 Контроллер ThinkSystem RAID 9350-16i 4GB Flash PCIe 12Gb Adapter
Артикул:
4Y37A72485
Вес:
0
кг.
Есть в наличии
Количество:
Цвет:
140 554
руб.
Краткое описание: LENOVO 4Y37A72485 - ThinkSystem RAID 9350-16i 4GB Flash PCIe 12Gb Adapter - Same Day Express Shipping offered Worldwide
brand_ice: LENOVO
Co2 Savings: 129.7
Supported storage drive interfaces: SAS, Serial ATA
Host interface: PCI Express x8
PCI Express slots version: 3.0
RAID levels: 0, 1, 10, 5, 50, 6, 60
Data transfer rate: 12 Gbit/s
SSD support: Yes
Internal memory: 4000 MB
Chipset: Microchip Luxor ROC PM8236
JBOD function: Yes
Number of devices supported: 16
Hot-swap: Yes
Certification: FCC Part 15 Class A Australia/New Zealand (AS/NZS 3548) Canada (ICES-003 Class B) Europe (EN55032/EN55024) Japan VCCI Korea KCC RoHS compliant EN/IEC/UL 60950 USA (FCC 47 CFR part 15 Subpart B class B)
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Operating temperature (T-T): 0 - 55 °C
Operating relative humidity (H-H): 20 - 80%
Width: 167 mm
Height: 64 mm
brand_ice: LENOVO
Co2 Savings: 129.7
Supported storage drive interfaces: SAS, Serial ATA
Host interface: PCI Express x8
PCI Express slots version: 3.0
RAID levels: 0, 1, 10, 5, 50, 6, 60
Data transfer rate: 12 Gbit/s
SSD support: Yes
Internal memory: 4000 MB
Chipset: Microchip Luxor ROC PM8236
JBOD function: Yes
Number of devices supported: 16
Hot-swap: Yes
Certification: FCC Part 15 Class A Australia/New Zealand (AS/NZS 3548) Canada (ICES-003 Class B) Europe (EN55032/EN55024) Japan VCCI Korea KCC RoHS compliant EN/IEC/UL 60950 USA (FCC 47 CFR part 15 Subpart B class B)
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Operating temperature (T-T): 0 - 55 °C
Operating relative humidity (H-H): 20 - 80%
Width: 167 mm
Height: 64 mm
Lenovo 4Y37A72485. Supported storage drive interfaces: SAS, Serial ATA, Host interface: PCI Express x8. RAID levels: 0, 1, 10, 5, 50, 6, 60, Data transfer rate: 12 Gbit/s, Internal memory: 4000 MB. Width: 167 mm, Height: 64 mm
The ThinkSystem RAID 9350 family of internal 12 Gbps SAS RAID controllers are high-performance low-cost RAID-on-chip (ROC) adapters that are designed and manufactured by Lenovo. These adapters support all major RAID levels including RAID-6 and RAID-60, and include support for Lenovo management tools. This product guide provides essential presales information to understand the ThinkSystem RAID 9350-16i and 9350-8i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
The ThinkSystem RAID 9350 family of internal 12 Gbps SAS RAID controllers are high-performance low-cost RAID-on-chip (ROC) adapters that are designed and manufactured by Lenovo. These adapters support all major RAID levels including RAID-6 and RAID-60, and include support for Lenovo management tools. This product guide provides essential presales information to understand the ThinkSystem RAID 9350-16i and 9350-8i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
-
CertificationFCC Part 15 Class A Australia/New Zealand (AS/NZS 3548) Canada (ICES-003 Class B) Europe (EN55032/EN55024) Japan VCCI Korea KCC RoHS compliant EN/IEC/UL 60950 USA (FCC 47 CFR part 15 Subpart B class B)
-
ChipsetMicrochip Luxor ROC PM8236
-
Co2 Savings129.7
-
Data transfer rate12 Gbit/s
-
Height64 mm
-
Host InterfacePCI Express x8
-
Hot-swapYes
-
Internal memory4000 MB
-
JBOD functionYes
-
Linux operating systems supportedYes
-
Number of devices supported16
-
Operating relative humidity (H-H)20 - 80%
-
Operating temperature (T-T)0 - 55 °C
-
PCI Express slots version3
-
RAID levels0, 1, 10, 5, 50, 6, 60
-
SSD supportYes
-
Supported storage drive interfacesSAS, Serial ATA
-
Width167 mm
-
Windows operating systems supportedYes
-
ПоставщикSERVERGEAR
-
ПроизводительLenovo
-
Тип товараКонтроллер
