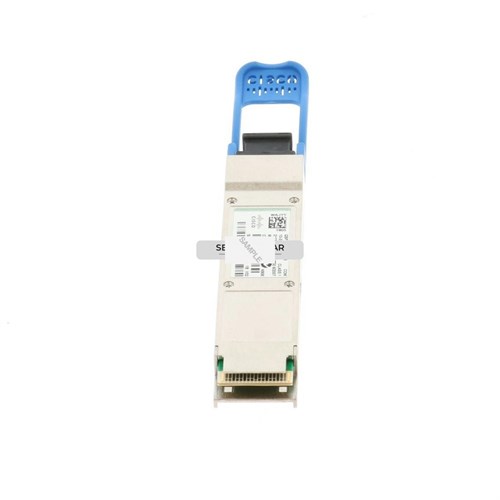

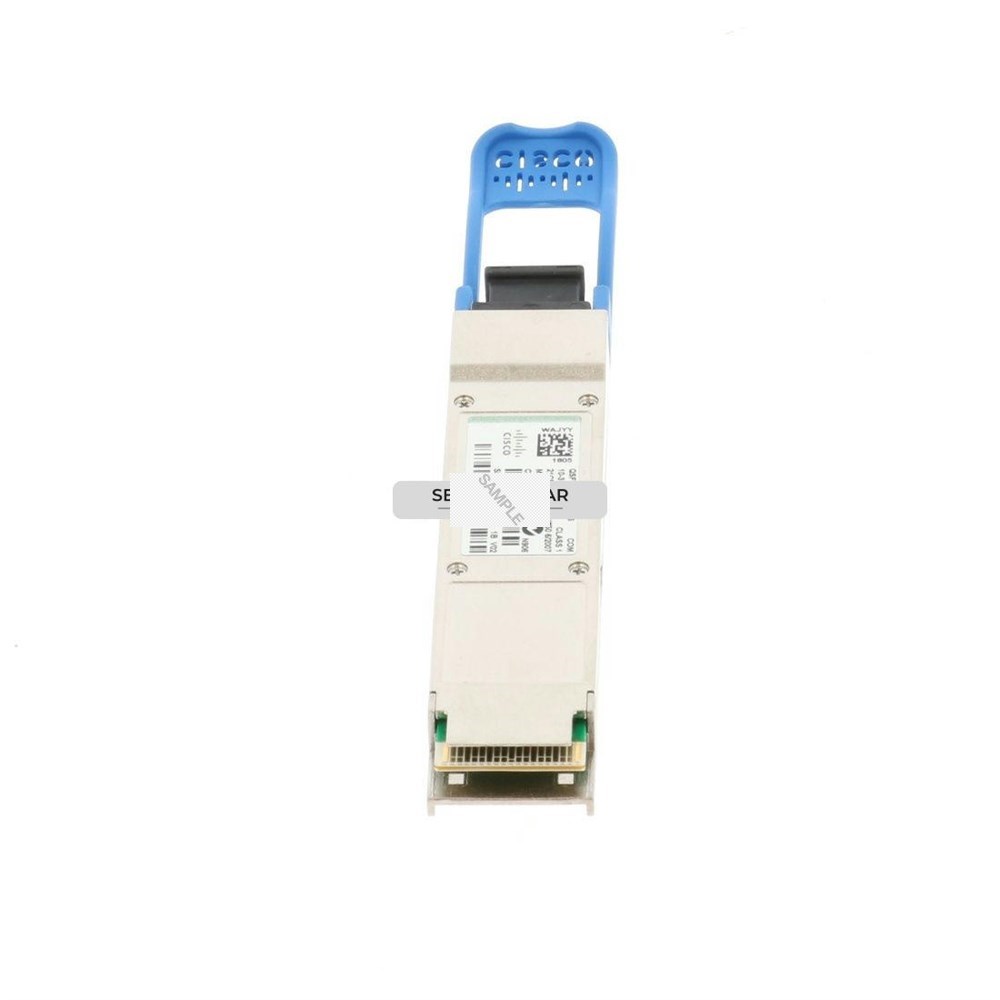

QSFP-4X10G-LR-S Трансивер QSFP 4x10G Transceiver Module,SM MPO, 10KM
QSFP-4X10G-LR-S Трансивер QSFP 4x10G Transceiver Module,SM MPO, 10KM
Артикул:
QSFP-4X10G-LR-S
Вес:
0
кг.
Есть в наличии
Количество:
Цвет:
30 747
руб.
Краткое описание: CISCO QSFP-4X10G-LR-S - QSFP 4x10G Transceiver Module,SM MPO, 10KM, - Same Day Express Shipping offered Worldwide
brand_ice: CISCO
Co2 Savings: 0
SFP transceiver type: Fiber optic
Data transfer rate (max): 40 Gbp/s
Interface type: QSFP
Single-mode fiber (SMF) supported: Yes
Fiber optic connector: MPO12
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
brand_ice: CISCO
Co2 Savings: 0
SFP transceiver type: Fiber optic
Data transfer rate (max): 40 Gbp/s
Interface type: QSFP
Single-mode fiber (SMF) supported: Yes
Fiber optic connector: MPO12
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Cisco QSFP-4X10G-LR-S. SFP transceiver type: Fiber optic, Maximum data transfer rate: 40000 Mbit/s, Interface type: QSFP
The Cisco QSFP-4X10G-LR-S QSFP module supports link lengths of up to 10km on G.652 Single-Mode Fiber (SMF). It enables high-bandwidth 40G optical links over 12-fiber parallel fiber terminated with MPO/MTP multifiber female connectors. It can also be used in a 4x10G mode for interoperability with 10GBASE-LR interfaces up to 10km.
The 4x10G connectivity is achieved using an external 12-fiber parallel to 2-fiber duplex breakout cable, which connects the 4x10G LR module to four 10GBASE-LR optical interfaces. Cisco’s QSFP-4X10G-LR-S is optimized to guarantee interoperability in 4x10G mode over the full specification range of 10GBASE-LR and the SFP-10/25G-LR-S (in 10G mode). QSFP-4X10G-LR-S does not support FCoE.
The Cisco QSFP-4X10G-LR-S QSFP module supports link lengths of up to 10km on G.652 Single-Mode Fiber (SMF). It enables high-bandwidth 40G optical links over 12-fiber parallel fiber terminated with MPO/MTP multifiber female connectors. It can also be used in a 4x10G mode for interoperability with 10GBASE-LR interfaces up to 10km.
The 4x10G connectivity is achieved using an external 12-fiber parallel to 2-fiber duplex breakout cable, which connects the 4x10G LR module to four 10GBASE-LR optical interfaces. Cisco’s QSFP-4X10G-LR-S is optimized to guarantee interoperability in 4x10G mode over the full specification range of 10GBASE-LR and the SFP-10/25G-LR-S (in 10G mode). QSFP-4X10G-LR-S does not support FCoE.
-
Co2 Savings0
-
Data transfer rate (max)40 Gbp/s
-
Fiber optic connectorMPO12
-
Interface typeQSFP
-
Maximum transfer distance10000 m
-
SFP transceiver typeFiber optic
-
Single-mode fiber (SMF) supportedYes
-
Wavelength1310 nm
-
ПоставщикSERVERGEAR
-
ПроизводительCisco
-
Тип товараТрансивер
